Lug Tip Kelebek Vana
Apps
HVAC Systems
Treatment plants
paper industry
Fresh water installations
sea water
- PN 16 CF8 Stainless Flap with EPDM/NBR gasket
* With Gear Box (DN250/300/350/400/450/500/600)
** Valve CF8M (316 quality) can be produced upon request.
*** Can be produced with Viton Gasket upon request

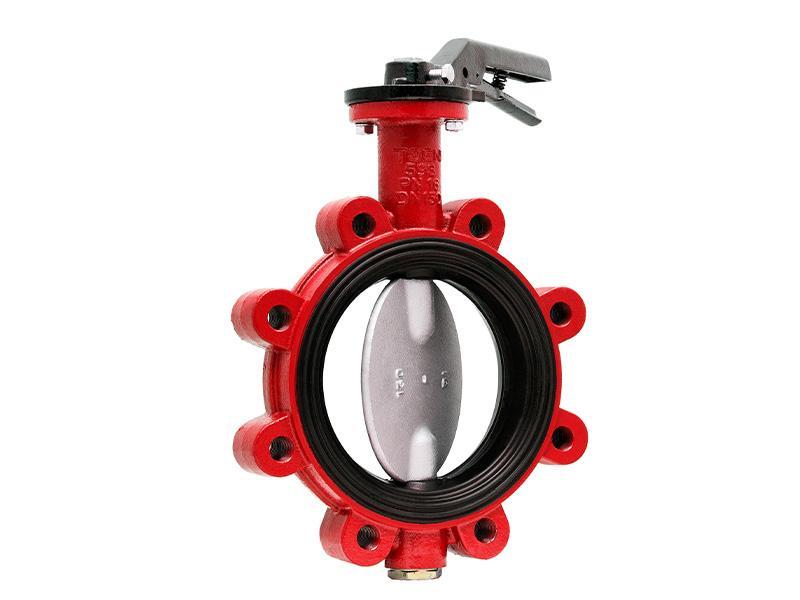

Lug Vulcanized Butterfly Valves are generally preferred because they are cheaper and lighter than other valve designs and require less support. The disc is placed in the middle of the pipe. A rod engages through the disc to an actuator outside the valve. Rotating the actuator rotates the disc parallel or perpendicular to the flow. Unlike the ball valve, the disc is always in the flow, thus causing a pressure drop even when open. This product is produced as Ductile Iron with Stainless Flap.
