Precision milling, drilling, pooling with CNC Vertical Machining Centers
unloading and adapter-free synchronized threading also with freehand drawing
It is possible to process the specified forms.

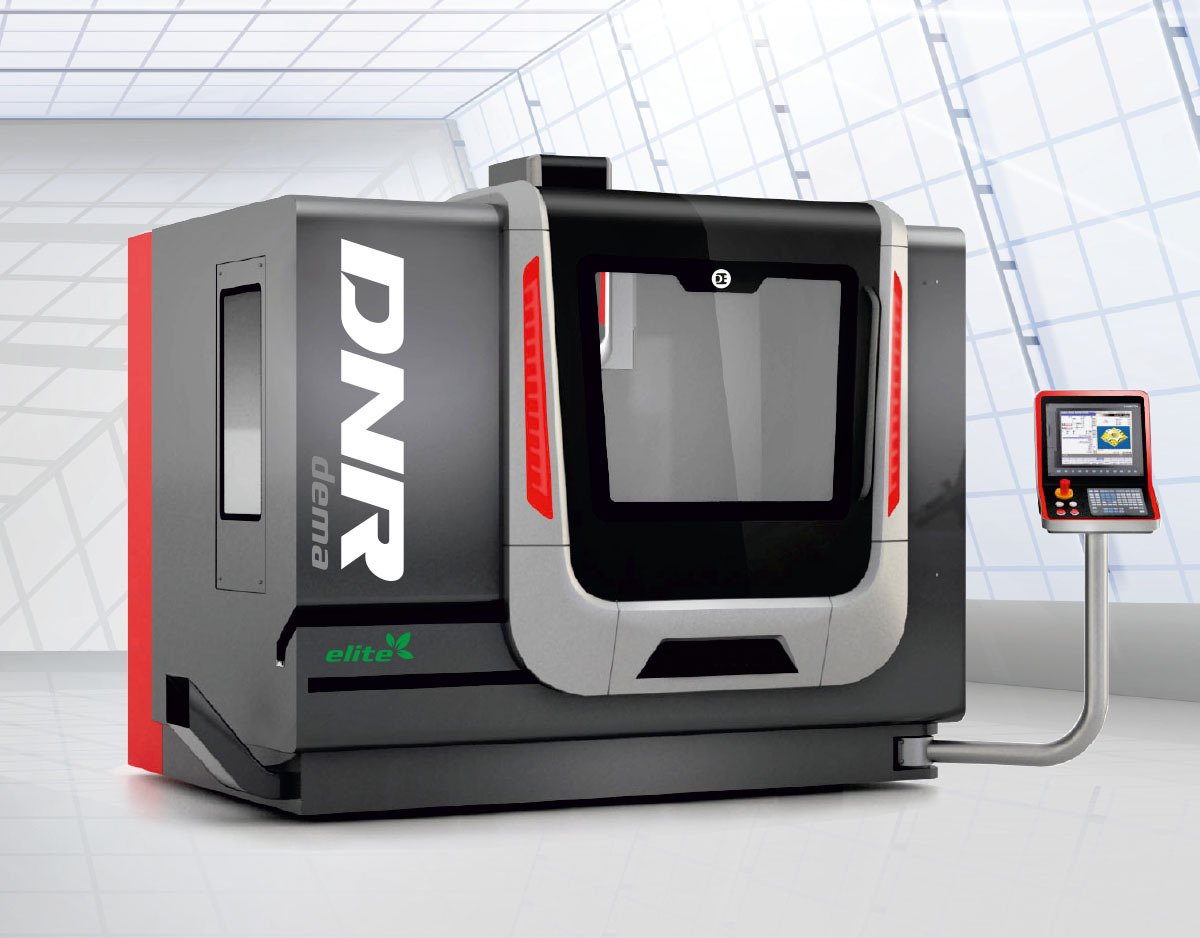

TMC 1000 CNC DİKEY İŞLEME MERKEZİ
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
Specially produced precision, backlash-free double nut ball screws.
Fast and serial automatic tool changer.
Direct Drive precision and rigid spindles.
High precision, economical, long movement.
Stable travel with a linear or friction slide.
Above-standard positioning and repeatability accuracy.
Stress relieved meehanite cast body
High cutting ability without noise and vibration.
Domestic free installation and training support
Fast service and spare parts support
| Axis speed – X/Y/Z | 36/36/36 | m/min. |
| Cutting – feedrate – X/Y/Z | 1~15 | m/min. |
| X axis movement | 1020 | mm |
| Y axis movement | 510 | mm |
| Z axis movement | 560 | mm |
| Max. Workpiece weight | 500 | kg |
| spindle speed | 10,000 | r/min. |
| spindle motor power | 7.5/11 | kW |
| Table dimensions | 1200×500 | mm |
Standard Equipment
*Mitsubishi M80A-4A(10.4″ touch screen panel)
*Dialogue programming (Navi-Mill)
*BT 40/10000 rpm. direct drive spindle
*BT 40 arm type 24 sets of ATC
*Class C3 ball screw with double nut
*Ball or roller linear guideways
* Fully enclosed cabin
*Steel belt type chip conveyor (with bucket)
*Automatic lubrication system
* Spindle air blowing system
*Oil and water separator unit
*Rigid tapping capability
* In-cabin sawdust washing system
*Electric cabin cooling system
*3-Phase 380/200 V – 50/60 Hz. external transformer
*Interior lighting and alarm-warning lamps
*Front door safety switch
*Air and water gun
*Cooling system
*Portable handwheel
*4. Axis preparation
*Auto power on/off
* Leveling bolt and plates
*Material bag & tools
*NS
Optional Equipment
*FANUC 0İ MF(10.4″ LCD color screen panel)
*BT 40/12.000 rpm. BT 40/15,000 rpm. direct drive spindle
*Internal quenching (30 bar)
*Air conditioner for electric cabinet
*4. CNC rotary table with axis
*Tool measuring system
*Workpiece measuring system
*Automatic door
