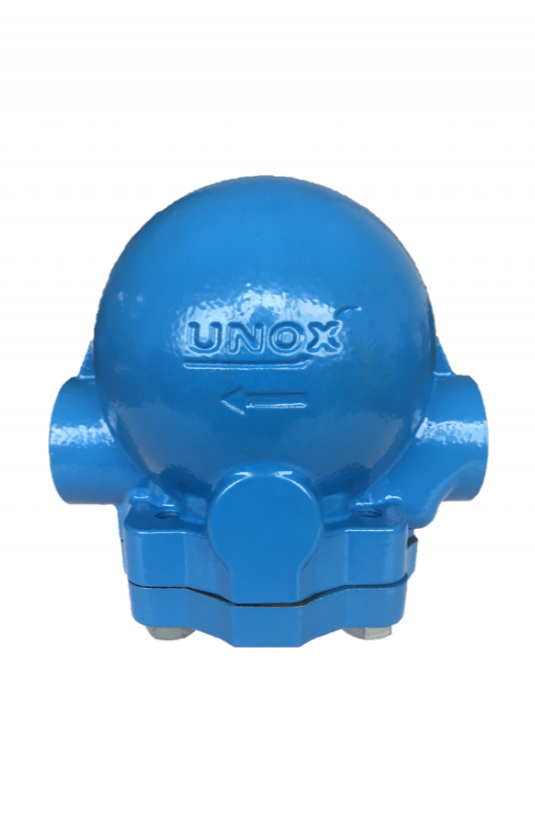

Thermostatic Threaded Trap with Float

Steam trap or steam trap are installation elements used to discharge the condensate formed as a result of condensation in steam systems from the system. For many years, it entered our language with a wrong naming (meaning condensate, stop or stop) as "trash trap" and this wrong naming caused misunderstandings among technical practitioners. However, nowadays, the expression "steam trap" has become widespread and It started to settle in our Turkish with its correct meaning.

Steam traps have three main functions;

1. To drain the formed condensate.
2. To prevent steam from escaping during evacuation, to trap the steam.
3. To evacuate air and non-condensable gases.

BODY: GG40.3 SFERO CASTING

COVER: GG40 SFERO CASTING

MAX WORKING PRESSURE : 16 BAR

MAX WORKING TEMPERATURE : 250°C

▲p: 4.5-10-14bar

Usage areas;

• Heat Stations
• Heating Systems
• Steam boiler
• Drying Ovens
• Steam Separators
• Flash Steam Tank
• Ovens
• tanks
