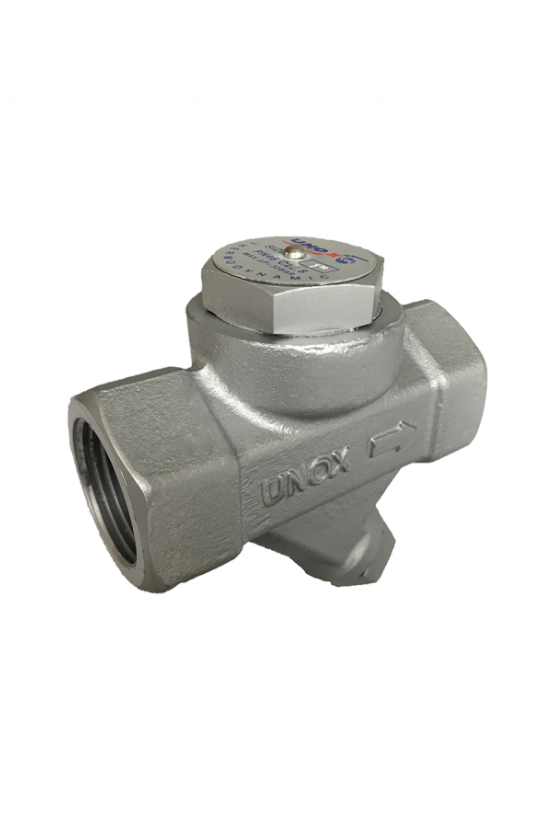

Termodinamik Dişli Kondenstop

Thermodynamic Threaded Traps are simple, robust and reliable. They can operate up to very high temperatures and pressures.

Initially, the incoming pressure raises the disc and the cool condensate is immediately discharged.

The hot condensate flowing through the inlet passage to the chamber below the disc lowers the pressure and releases the flash steam moving at high velocity. This high velocity creates a low pressure area under the disc, pulling it towards its seat.

The operating speed depends on the steam temperature and ambient conditions. Most traps will stay closed for 20 to 40 seconds. If the trap is opened too often, perhaps due to a cold, wet, or windy location, the opening speed can be slowed by installing an insulating cover on top of the trap.

ADVANTAGES :

• Thermodynamic traps can operate in all operating ranges without any internal adjustment or modification.
• They are compact, simple, lightweight and have a large condensing capacity for their size.
• Thermodynamic traps can be used in high pressure and superheated steam and are not affected by water hammer or vibration.

SIZE : 1/2″-3/4″-1″

BODY : FORGED STEEL

COVER : STAINLESS STEEL

SEAT & PISTON : STEEL

MAX WORKING PRESS: 40BAR

MAX TEMP: 250°C

MIN OPERATING PRESSURE: 0.3 BAR
