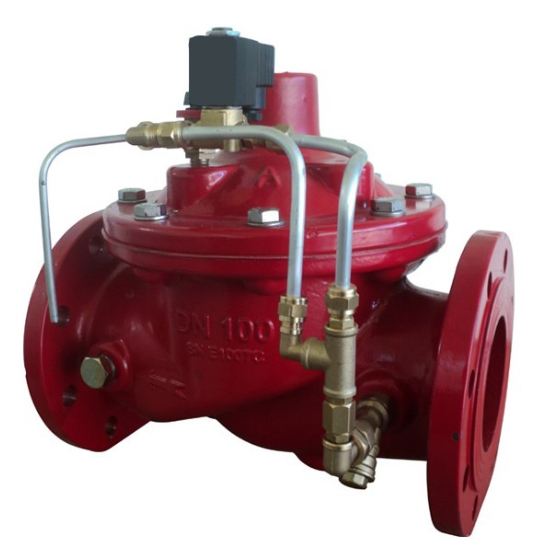

Solenoid Kontrol Vanası
Category
Stock code
SKVQZ
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
Solenoid Control Valve
Solenoid control valves are hydraulic control valves that perform the on-off function remotely using electrical energy. Control of solenoid control valves, a control device that can give an electrical signal, PLC provided by control units or time relays.
Solenoid Control Valve Features
- The solenoid valves used on the control valve can be used as 3/2 position or 2/2 position valves depending on the application.
- Solenoid control valves can be selected as normally closed (NC) or normally open (NO) optionally.
- The standard voltage value of solenoid control valves is 24 Volts AC. However, optionally, it is possible to provide control at different voltage values by using 9 Volt DC latching or 12 Volt DC coils.
- It can be used in many different applications by adding pilot valves that provide different pressure, flow and level control to be mounted on the valve.
Instruction manual
Mount the valve according to the arrow sign showing the flow direction on it.
For ease of service maintenance of the valve, it is recommended to install isolation valves (gate, butterfly or ball valve, etc.) to shut off the water in the upstream line.
In order for the valve to work efficiently, it is recommended to put a suction cup before the valve.
In order to protect the valve from the danger of frost during the winter months, discharge the water in the actuator of the valve to the atmosphere.
After assembling the main valve to the mains, mount the electrical connection of the solenoid valve on the valve to the control device you will use.
Correctly select the cable diameter to be drawn for electrical transmission between the control device and the solenoid control valve according to the electrical characteristics of the solenoid valve and the distance to be drawn.
The voltage value of the controller to be used must be the same as the voltage value of the solenoid valve.
To open and close the valve manually, move the ball valve indicated with 4 to the desired position.
Clean the filter indicated by the number 5 according to the pollution degree of the water.
Instruction manual
Mount the valve according to the arrow sign showing the flow direction on it.
For ease of service maintenance of the valve, it is recommended to install isolation valves (gate, butterfly or ball valve, etc.) to shut off the water in the upstream line.
In order for the valve to work efficiently, it is recommended to put a suction cup before the valve.
In order to protect the valve from the danger of frost during the winter months, discharge the water in the actuator of the valve to the atmosphere.
After assembling the main valve to the mains, mount the electrical connection of the solenoid valve on the valve to the control device you will use.
Correctly select the cable diameter to be drawn for electrical transmission between the control device and the solenoid control valve according to the electrical characteristics of the solenoid valve and the distance to be drawn.
The voltage value of the controller to be used must be the same as the voltage value of the solenoid valve.
To open and close the valve manually, move the ball valve indicated with 4 to the desired position.
Clean the filter indicated by the number 5 according to the pollution degree of the water.
