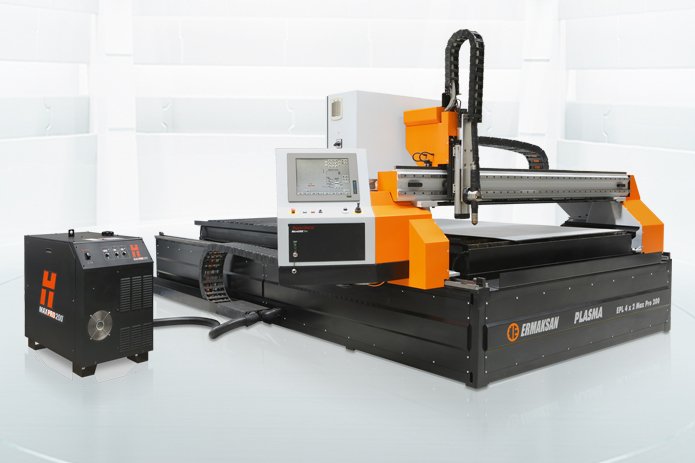

Smart Plasma - Plasma Cutting Machine
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
STANDARD EQUIPMENT
- Hypertherm MicroEDGE ® Pro CNC
- 17'' LCD Industrial Touch Screen
- Hypertherm Operator Panel
- Safe Module Inputs and Outputs
- Remote Interface
- Phoenix Interface
- Metric and Inch Scales.
- Hypertherm MaxPro200 Plasma Source
- Hypertherm Auto Gas Console
- ERMAK THC Automatic Height Control System
- Secure Input - Output Interface Module
- Nozzle Sensor
- Collision Sensor
- 200 mm Standard Stroke
- Laser Pointer
- TurboNest® Cad/Cam Software
- 3 Axis (X,Y,Z)
- 3 Pieces Mitsubishi Servo Motor and Driver
- 3 Pieces Planetary Neugart Gearboxes
- High Precision Linear Rails
- High Precision and Quiet Atlanta Helical Gear and Rack
- Igus Brand Silent Cable Trays in X, Y, Z Axes
- Cutting Table with Pneumatic System
- Movable Control Panel System
- 2 Emergency Buttons
- 6 Mechanical Stops
OPTIONAL EQUIPMENT
- Oxygen Cutting Station
- Messer-Tanaka Oxygen Torch
- Ermaksan Automatic Ignition System
- IHT Automation Capacitive Distance and Height Control
- -/+45 Degree Manual Angle Cutting Tool for Oxygen and Plasma
- 350mm and 500mm Selectable Stroke for Oxygen and Plasma
- Pipe Cutting Technology
- Hypertherm MicroEDGEPro CNC Controller
- Ermak 300mm stroke Torch Height controller
- Hypertherm Turbonest+Rotary Tube Pro Cad/Cam Software
- Chuck and tube support mechanism
- Plasma Suction Unit
- ER4000 = 4000m3/hr flow
- ER6000 = 6000m3/hr flow rate
- ER10000 = 10000m3/hr flow rate
- Sick Light Barrier
- Online and Bypass Featured 3KVA Infrom Saver DSP UPS Air Dryer
- 600 lt./min. Flow rate 240V AC 50-60Hz
- 0.5, 0.05, 0.001 Micron Particle Removal Filter
- Optional Color Options.
- Installing a Cooling Fan or Heater on the Electric Panel According to the Working Environment.
- Optional Electrical Voltage.
- Compliance with European Union CE Norms.
