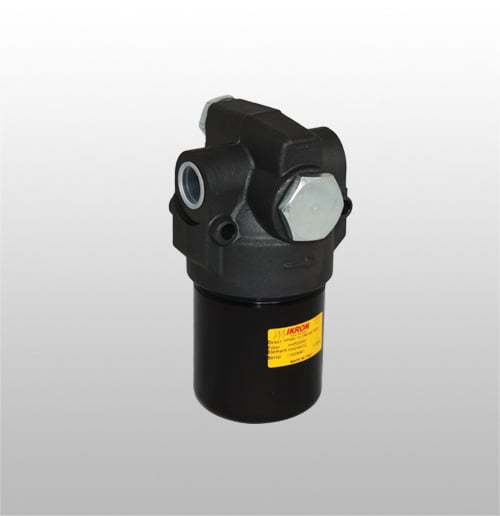

Basınç Hattı Filtreleri 420 bar - 760 Serisi (By Pass'lı)
Category
Stock code
APQUX349
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
Pressure Line Filters 420 bar - Series 760 (By Pass)
Types are available in the range of 3µ - 25µ Micron.
The maximum bar pressure is in the range of 35-420.
By-pass line type filters.
| PRESSURE LINE FILTERS 420 BAR - 760 SERIES (WITH BY PASS) | ||||
| HF760.20.080-FG | 35 | 10 | 420 | 1/2" |
| HF760.20.203-FG | 70 | 10 | 420 | 3/4" |
| HF760.30.223-FG | 130 | 10 | 420 | one" |
| HF760.40.132-FG | 190 | 10 | 420 | 1 1/4" |
| HF760.40.227-FG | 280 | 10 | 420 | 1 1/2" |
3µm, 6µm, 10µm, 16µm, 25µm types of pressure filters are also available WITHOUT BY-PASS.
FG Group filters are ABSOLUTE filters. The filter element is micro-fiber glass.
