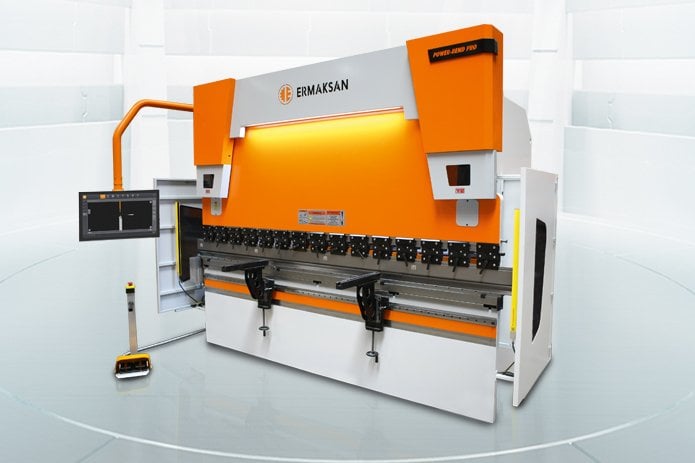

Power-Bend Pro CNC Press Brake

EASY SERVICE WITH REMOTE ACCESS

It provides both time and money to be able to do complex bending easily thanks to its standard 4 axis back gauge and other accessories that assist bending. For the solution of malfunctions that may occur in the machine, time loss is minimized by intervening with remote access over the internet.

USER-FRIENDLY TOUCH SCREEN

With the 3D feature of the controller, the models can be seen realistically on the screen. Thus, it provides the operator with the ability to distinguish objects from each other and ease of application.

QUICK AND EASY MOLD CHANGE

The mold can be changed without the need for an extra key for the standard promecams used in the machine.

RIGID UPPER JAW WITH PRECISE POSITIONED BEARINGS

Thanks to the rigid upper jaw working with a bending precision of 0.01 mm on bearings with bearings from 12 points, it is possible to obtain sensitive bending.

FRONT SUPPORT ARMS

Sliding front support arms with stoppers that move with the help of linear rails and trolleys are your closest assistant.

EASY MAINTENANCE THANKS TO ITS INDUSTRIAL DESIGN AND FLEXIBLE STRUCTURE

Thanks to the easy access to the accessories and the low-maintenance hydraulic systems, the maintenance and failure response times are minimized.

STANDARD EQUIPMENT

• Sliding front arms with height adjustment and ruler
• Surface hardened and ground upper and lower molds
• Promecam fast die clamping system
• control units; ER TOUCH BASIC
• CNC controlled single axis 800 mm strong backgauge
• 410 mm throat depth (between 60-320 tons)
• 2 backgauge tongues
• Metric and inch scales
• The crowning system on the lower table (manual on 3100/.../4100-260 and 3100/.../4100-320 machines, motorized crowning system on machines over 3100-400 tons) is standard.
• Moving foot pedal suitable for single and serial bending in accordance with CE norm
• Front protection light curtain, side protection mesh + switch and rear protection light curtain
• Cylinder and upper jaw cover sheets renewed with LED light
• Optional electrical voltage option according to the country where the machine will operate

OPTIONAL EQUIPMENT

• Special stroke and special depth options that provide advantages to the user in deep bends
• control units; ER TOUCH MASTER, DELEM ER70, DELEM DA-58T, CYBELEC MODEVA PAC
• Optional backgauge stroke additional backgauge tongues
• Motorized crowning systems
• Hydraulic oil cooling and heating device
• Optional upper and lower molds
• Optional table width or bottom mold channel options
• Dies for box or pole bending
• Laser front protection options
• Electrical panel, oil tank and controller case can be heated and cooled optionally
• Optional upper and lower die holder options
• Optional Promecam mechanical, pneumatic and hydraulic fast die holder system
• Mold storage cabinet
• Automatic slide lubrication system that extends the life of the machine's slide system
• U-Type dies for thick material bending
• Additional movable front support arms to eliminate the stretching of thin materials
• Special machine production suitable for sheet length and thickness optionally
• Front sheet support system with AP3/AP4 motor and parking for reverse bends
• Right side mounting of control panel and/or electrical panel according to customer's request
• Rear sheet support system
• Sheet metal removal system
• Pneumatic tongue back gauge system
