Pnömatik Pistonlu Kontrol Vanası – 33601

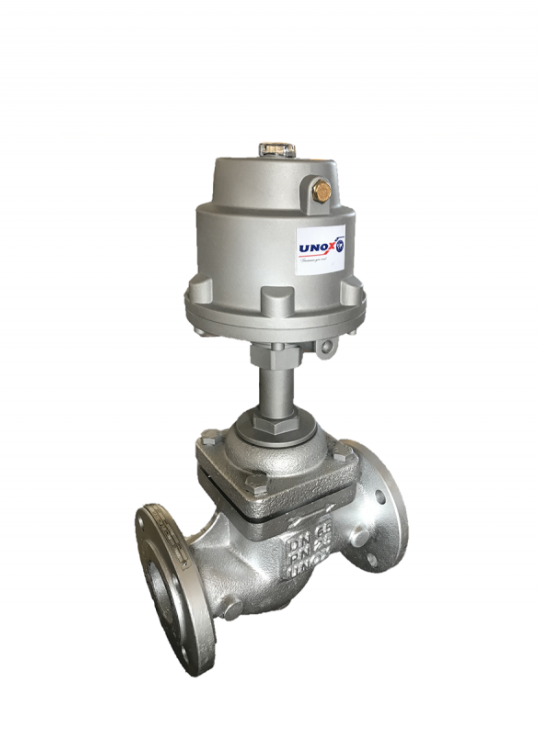

Pneumatic Piston Control Valve – 33601

Pneumatic valve works by moving the single acting piston with an air-controlled actuator.

It has two types, normally open and closed. The normally closed position is the position in which the valve is initially closed. Fluid passage is not allowed. With the spring force applied continuously on the movable piston, it closes the orifice hole with a plug and prevents the flow of fluid. To open the valve The valve is brought to the open position with the air pressure applied from the air pressure inlet point. The normally open position is the position in which the valve was initially open. Fluid passage is allowed. It removes the plug in the orifice hole with the spring force applied continuously on the movable piston and allows fluid passage. In order to bring the valve to the closed position, the valve is brought to the closed position with the air pressure given from the air pressure inlet at the top.

BODY : GG-25 GRAY CASTING

ACTUATOR : ALUMINUM / STAINLESS

PRESSURE CLASS: PN 16 SUPPLY AIR 3-8 BAR

WORKING PRESSURE : 0-10 BAR

SEALING CLASS : CLASS VI (PTFE)

USAGE TEMPERATURE: -10+220ºC

FAIL – SAFE EFFECT NORMALLY OFF / NORMALLY ON
