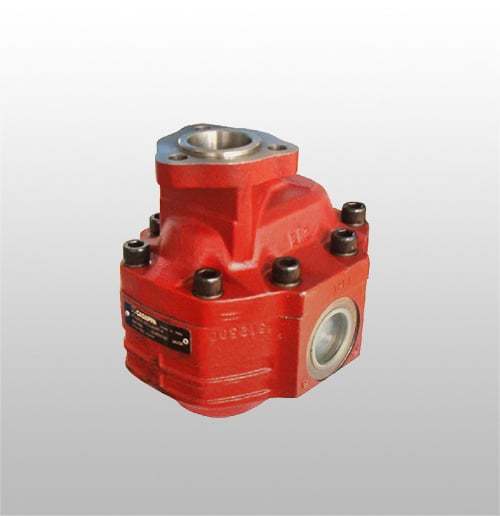

PLM 30 Serisi 84-E4 Mil ve Kapak Tipli Çift Yönlü Dişli Motorlar
Category
Stock code
ABDGHMPU
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
You can review the technical details of the related product below.
It consists of PLM, KM, FM and HDM series.
Cast body and aluminum body options are available.
They are bidirectional motors.
Unidirectional versions are also available.
The leakage line of the motors is on the back cover.
Shaft and cover versions are available upon request.
| PLM 30 Series 84-E4 Shaft and Cover Type Bidirectional Geared Motors | |||||
| TYPE | Depl. | Operating pressure | Max. Speed | Shaft-Cover | |
| group3 | cc/dev. | continually | pig | r/min | type |
| PLM 30.43 | 43.98 | 230 | 260 | 3000 | 84-E4 |
| PLM 30.51 | 51.83 | 210 | 240 | 2500 | 84-E4 |
| PLM 30.61 | 61.26 | 190 | 220 | 2500 | 84-E4 |
| PLM 30.73 | 73.82 | 170 | 200 | 2500 | 84-E4 |
| PLM 30.82 | 81.68 | 160 | 180 | 2200 | 84-E4 |
| PLM 30.90 | 91.1 | 150 | 170 | 2200 | 84-E4 |
