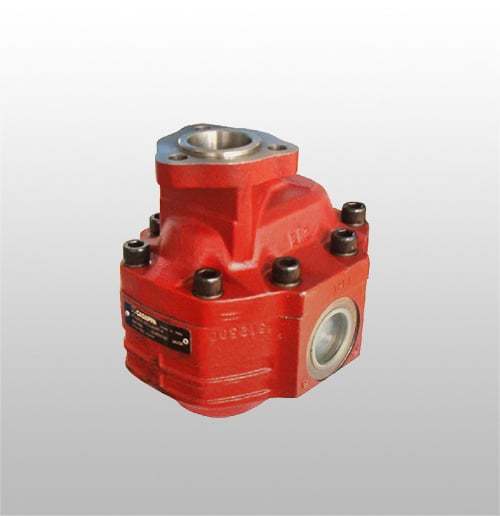

PLM 20 Series 04-S1 Shaft and Cover Type Bidirectional Gear Motors
Category
Stock code
EKLRTW69
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
You can review the technical details of the related product below.
It consists of PLM, KM, FM and HDM series.
Cast body and aluminum body options are available.
They are bidirectional motors.
Unidirectional versions are also available.
The leakage line of the motors is on the back cover.
Shaft and cover versions are available upon request.
| PLM 20 Series 04-S1 Shaft and Cover Type Bidirectional Gear Motors | |||||
| TYPE | Depl. | Operating pressure | Max. Speed | Shaft-Cover | |
| Group2 | cc/dev. | continuous peak | pig | r/min | type |
| PLM 20.4 | 4.95 | 250 | 300 | 4000 | 04-S1 |
| PLM 20.6.3 | 6.61 | 250 | 300 | 4000 | 04-S1 |
| PLM 20.8 | 8.26 | 250 | 300 | 3500 | 04-S1 |
| PLM 20.9 | 9.17 | 250 | 300 | 3500 | 04-S1 |
| PLM 20.11.2 | 11.23 | 250 | 300 | 3500 | 04-S1 |
| PLM 20.14 | 14.53 | 250 | 300 | 3500 | 04-S1 |
| PLM 20.16 | 16.85 | 250 | 300 | 3000 | 04-S1 |
| PLM 20.20 | 21.14 | 200 | 240 | 3000 | 04-S1 |
| PLM 20.25 | 26.42 | 170 | 210 | 2500 | 04-S1 |
| PLM 20.31.5 | 33.03 | 130 | 170 | 2000 | 04-S1 |
