LEO XGM/1B - 0.8 HP 220V TEK KADEMELİ SANTRİFÜJ POMPA

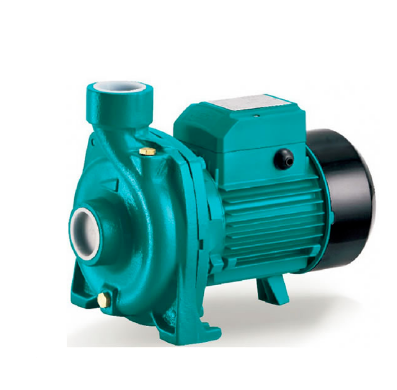

Centrifugal pump XGm
APPLICATION
-Can be used to transfer clean water or other liquids similar to water in their physical and chemical properties.
- Suitable for industrial use and urban water supply, high-rise buildings and fire-fighting pressure boosting, garden irrigation, long-distance water transfer, heating, ventilation and air conditioning control, circulation and pressure boosting for cold and hot water and supporting equipment, etc.
Pumpa
- Special anti-rust treatment for cast iron pump body and support
- AISI 304 mil
- Max. liquid temperature: +40℃
- Max. Suction: 8 m
Engine
- C & U bearing
-Copper winding
-Built-in thermal protector for single phase motor
-Insulation class: F
-Protection class: IPX4
-Max. ambient temperature: +40℃
Technical data
| No. | Section | Material |
| 1 | Pump body | HT 200 |
| 2 | Wheel | Rice |
| 3 | Mechanical seal | Carbon / Ceramic |
| 4 | Bracket Cover | AISI 304 |
| 5 | Support | ZL 102 |
| 6 | Roller | |
| 7 | Wheel | |
| 8 | Stator | |
| 9 | Condenser | |
| 10 | Tailgate | ZL 102 |
| 11 | Fan | PP |
| 12 | Fan Cover | PP |
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
It is suitable for lifting water from the well, sprinkling irrigation of the garden, increasing the pressure of running water and supporting equipment.
