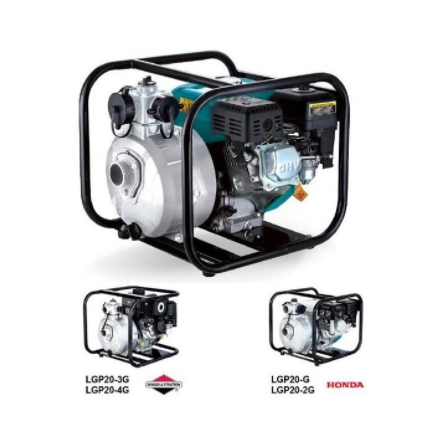

LEO LGP20-2H BENZİNLİ SU POMPASI

1.5” 2” LGP High Head Gasoline Water Pump

1.5” 2” LGP High Head Gasoline Water Pump Application

-Transportation of clean water with liquid temperature ranging between 0℃ and 40℃
- Applicable in water reserve and drainage for factories, mines, municipal facilities and field irrigation
- Can be used to transport long distances and large amounts of water

1.5” 2” LGP High Head Gasoline Water Pump Features:
A new and unique design with ergonomic features
A portable and compact pump frame
Top quality engine with perfect performance and long service life
Impeller designed with a high efficiency hydraulic system
Low fuel consumption
LEO engine as default, BS/Honda engine as option

Pump
Rust-resistant cast iron impeller and diffuser
Maximum suction: 8m, 120s are needed to suction 5m.
Input/Output: 50mm/2 x 38mm + 1 x 50mm
38mm/1 x 38mm + 2 x 50mm

Engine
Single cylinder, 4-stroke, air cooled
Maximum power: 6.5 HP
Rated speed: 3600 rpm
Reliable engine equipped with low engine oil shutdown system

Technical Information for 1.5” 2” LGP High Head Gasoline Water Pump

MODEL	Strength	Fuel tank	Engine oil	Volume	Q(m³/h)	0	5	10	15	20	25	30
	HP	L	L	cc	Q(l/min)	0	83.3	166.7	250	333.3	416.7	500
LGP20-H	6.5	2.8	0.55	196	H(m)	58	51	45	38.5	29	19	6
LGP20-2H	6.5	2.8	0.55	196		81	72.5	60	45	5	-	-
LGP20-G	6.5	2.8	0.58	196		59	54	48.8	39	30	20	-
LGP20-2G	6.5	2.8	0.58	196		84	77.7	61.6	38.3	4.9	-	-
LGP20-3G	6.5	3.1	0.6	208		59	55.2	50	42.8	15	-	-
LGP20-4G	6.5	3.1	0.6	208		86	77.6	60.7	40	4.4	-	-
