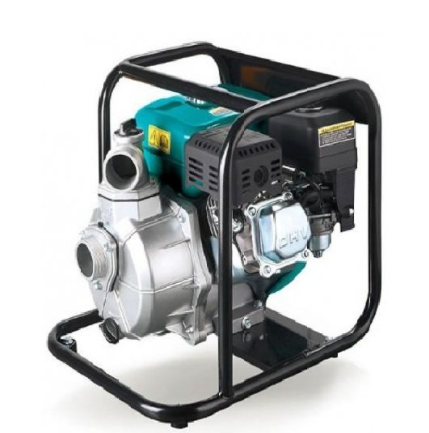

LEO LGP10 BENZİNLİ SU POMPASI
1” 1.5” Gasoline Water Pump
APPLICATION
- To transfer clean water with liquid temperature between 0℃ and 40℃.
- Applicable to water and drainage factories, mines, municipal facilities as well as field irrigation, etc.
Features
- New unique design with ergonomic features.
- Portable and compact pump frame.
- High quality motor with excellent performance and long service life.
- High efficiency hydraulic system impeller design.
- Low fuel consumption.
Pumpa
- Anti-rust cast iron impeller and diffuser
- Max. Suction: 8m / 120 s.
- Inlet / outlet: 25mm / 38mm
Engine
- Single cylinder, 2-stroke, Air cooled
- Max. Power: 1.6 HP
- Displacement: 42.7 cc
- Nominal speed: 7500 rpm
| MODEL | STRENGTH | Q(m³/h) | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| HP | Q(l/min) | 0 | 33.3 | 66.7 | 100 | 133.3 | 166.7 | 200 | 233.3 | 266.7 | |
| 1.6 | H (M) | 35 | 34 | 26 | ˗ | ˗ | ˗ | ˗ | ˗ | ˗ | |
| 1.6 | 35 | 34.5 | 32.5 | 29 | 25.5 | 20.5 | 12.1 | 6.5 | ˗ |
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
It is suitable for lifting water from the well, sprinkling irrigation of the garden, increasing the pressure of running water and supporting equipment.
