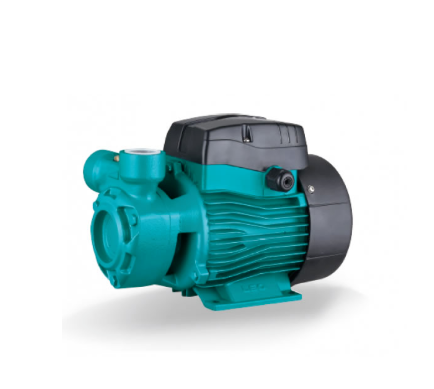

LEO AQM 60 - 0.8 HP 220V KENDİNDEN EMİŞLİ PREFERİKAL POMPA
AQm Environmental Pump
APPLICATION
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
It is suitable for lifting water from the well, sprinkling irrigation of the garden, increasing the pressure of running water and supporting equipment.
Pump
-Special anti-rust treatment for cast iron pump body and support
-Brass propeller
-AISI 304 mil
-Max. liquid temperature: +40℃
- Max. Suction: 8 m
Engine
- C & U bearing
- Copper winding
-Built-in thermal protector for single phase motor
-Insulation class: F
-Protection class: IPX4
-Max. ambient temperature: +40℃
Technical data
Hydraulic Performance Curve
| No. | Section | Material |
| 1 | Pump Body | HT200 |
| 2 | Wheel | Rice |
| 3 | Mechanical seal | carbon / ceramic |
| 4 | O-ring | NBR |
| 5 | Support | HT200 |
| 6 | Roller | |
| 7 | Wheel | |
| 8 | Fan cover | 08F |
| 9 | Fan | PP |
| 10 | Tailgate | ZL102 |
| 11 | Condenser | |
| 12 | Terminal box | ABS |
| 13 | Terminal board | PC |
| 14 | Stator | |
| 15 | Filling receipt | Hpb59-1 |
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
It is suitable for lifting water from the well, sprinkling irrigation in the garden, increasing the pressure of running water and supporting equipment.
