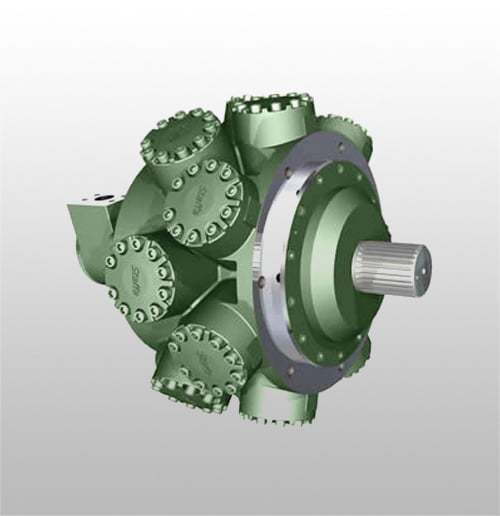

HMB Series Radial Piston Engines
Category
Stock code
CFHKNVX9
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
You can review the technical details of the related product below.
250 bar continuous working pressure
They are hydromotors with high efficiency.
Heavy duty models are available.
There are models that can be used in phosphate ester and water-based fluids.
| HMB SERIES RADIAL PISTON MOTORS | ||||||
| Type | Away (cc/dev) | Strength (kW) | Torque (Nm/Bar) | Operating pressure (Bar) | Speed (rpm) | Max. Pressure (Bar) |
| HMB | ||||||
| HMB10 | 188 | 25 | 2.79 | 207 | 500 | 241 |
| HMB030 | 442 | 42 | 6.56 | 207 | 450 | 293 |
| HMB045 | 740 | 60 | 10.95 | 250 | 400 | 293 |
| HMB060 | 983 | 80 | 14.5 | 250 | 300 | 293 |
| HMB080 | 1344 | one hundred | 19.9 | 250 | 300 | 293 |
| HMB100 | 1639 | 110 | 24.3 | 250 | 250 | 293 |
| HMB125 | 2050 | one hundred | 30.66 | 250 | 220 | 293 |
| HMB150 | 2470 | 115 | 36.95 | 250 | 220 | 293 |
| HMB200 | 3080 | 130 | 46.07 | 250 | 175 | 293 |
| HMB270 | 4310 | 140 | 63.79 | 250 | 125 | 293 |
| HMB325 | 5310 | 140 | 79.4 | 250 | one hundred | 293 |
