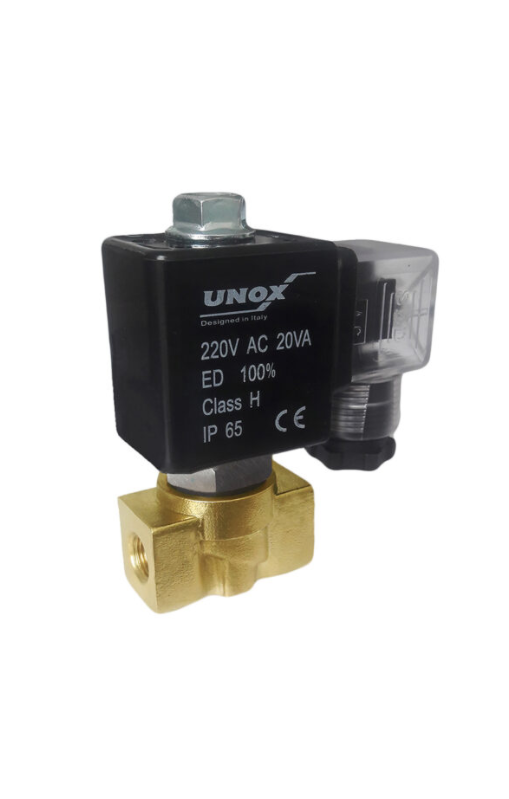

GEM1111 - 1/4 Genel Maksat Normalde Kapalı Solenoid Valf

General Purpose Normally Closed Solenoid Valves are two- or three-way valves that operate with AC and DC electrical energy and provide control of various fluids (air, gas, fuel, steam, water, etc.). It consists of body, sleeve, coil, diaphragm and core. solenoid valves; It is manufactured in two types as normally closed (to open the closed valve when the coil receives energy) and normally open (to close the open valve when it receives energy from the coil).

THINGS TO PAY ATTENTION:
-The coil should be selected in accordance with the operating voltage (AC-DC). Protection and insulation should be provided according to the place where it will be applied. (Electricity turns on when air comes in, and turns off again when you cut off the electricity)
-Min. and max. in the line or system you will use. pressure values are very important in the selection of the valve.
-The quality and temperature of the fluid is a direct factor in the selection of the valve.
-The direction of the fluid and the arrow mark on the body are in the same direction and attention should be paid to assembly.
- Since the solenoid valve does not function as a check valve, the fluid flows back in reverse pressures. In these cases, installing a check valve after the solenoid valve is correct for the connection.
-The line on which the valve is attached must be free of impurities.
