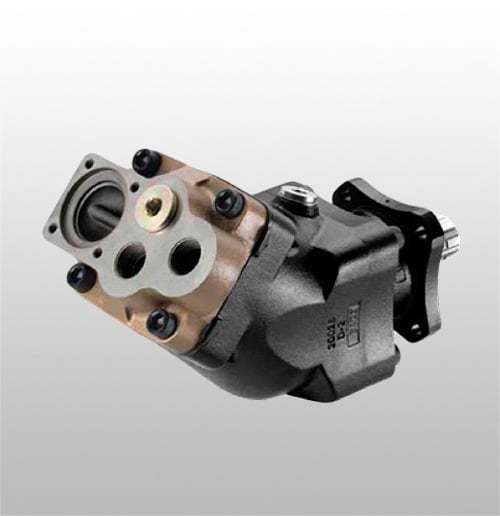

Fixed Displacement Tandem Piston Pumps SLPD Series
Category
Stock code
DJRTVWX8
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
You can examine the data sheet of the relevant product below.
There are 20+20cc and 76+76cc displacement ranges.
It has a continuous working pressure of 350 bar.
With ISO connection, direct connection to PTO can be made.
Right and left rotation directions are available.
| SLPD DIN HYDRAULIC PUMPS | ||||
| Type | Away | Max. Pressure | Max. Speed | |
| SLPD DIN | (lt/min.) | (bar) | (rpm) | |
| SLPD 20/20 | 20.30 + 20.30 | 350.00 | 2200 | |
| SLPD 28/28 | 27.50 + 27.50 | 350.00 | 1800 | |
| SLPD 40/20 | 40.70 + 20.30 | 350.00 | 2200 | |
| SLPD 35/35 | 33.90 + 33.90 | 330.00 | 2200 | |
| SLPD 56/28 | 54.90 + 27.50 | 350.00 | 1800 | |
| SLPD 46/46 | 45.80 + 45.80 | 330.00 | 1800 | |
| SLPD 53/53 | 52.50 + 52.50 | 330.00 | 1600 | |
| SLPD 64/32 | 63.00 + 31.50 | 350.00 | 1600 | |
