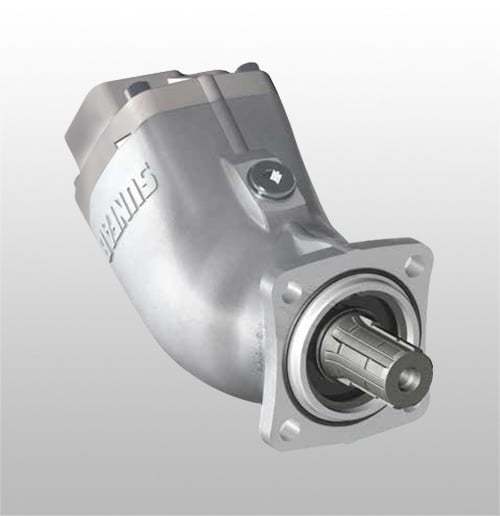

Sabit Deplasmanlı Pistonlu Pompalar SCP ISO Serisi
Category
Stock code
CLNTVW36
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
You can examine the data sheet of the relevant product below.
Displacement range of 12 cc -130 cc.
With ISO Link, direct connection to PTO can be made.
Right and left rotation directions are available.
Mobile and industrial applications.
Suction adapter is standard on every pump.
| SCP INCLINED AXIS (MOBILE) PISTON PUMPS | ||||
| Type | Cover / Shaft | Away | Max. Pressure | Max. Speed |
| SCP DIN | Type | (cc/dev.) | (bar) | (rpm) |
| SCP 012 | ISO FLANGE - DIN SHAFT | 12.60 | 400 | 3000 |
| SCP 017 | ISO FLANGE - DIN SHAFT | 17.00 | 400 | 3000 |
| SCP 025 | ISO FLANGE - DIN SHAFT | 25.40 | 400 | 3000 |
| SCP 034 | ISO FLANGE - DIN SHAFT | 34.20 | 400 | 3000 |
| SCP 040 | ISO FLANGE - DIN SHAFT | 41.20 | 400 | 2500 |
| SCP 047 | ISO FLANGE - DIN SHAFT | 47.10 | 400 | 2500 |
| SCP 056 | ISO FLANGE - DIN SHAFT | 56.00 | 400 | 2500 |
| SCP 064 | ISO FLANGE - DIN SHAFT | 63.60 | 400 | 2500 |
| SCP 084 | ISO FLANGE - DIN SHAFT | 83.60 | 400 | 2000 |
| SCP 108 | ISO FLANGE - DIN SHAFT | 108.00 | 400 | 2000 |
| SCPT 090 | ISO FLANGE - DIN SHAFT | 90.00 | 300 | 2000 |
| SCPT 130 | ISO FLANGE - DIN SHAFT | 130.00 | 300 | 2000 |
