Precision internal and external turning with CNC Lathe, internal and external screw
drawing, drilling operations are performed. In addition, milling with the C-axis feature
operations can be made.

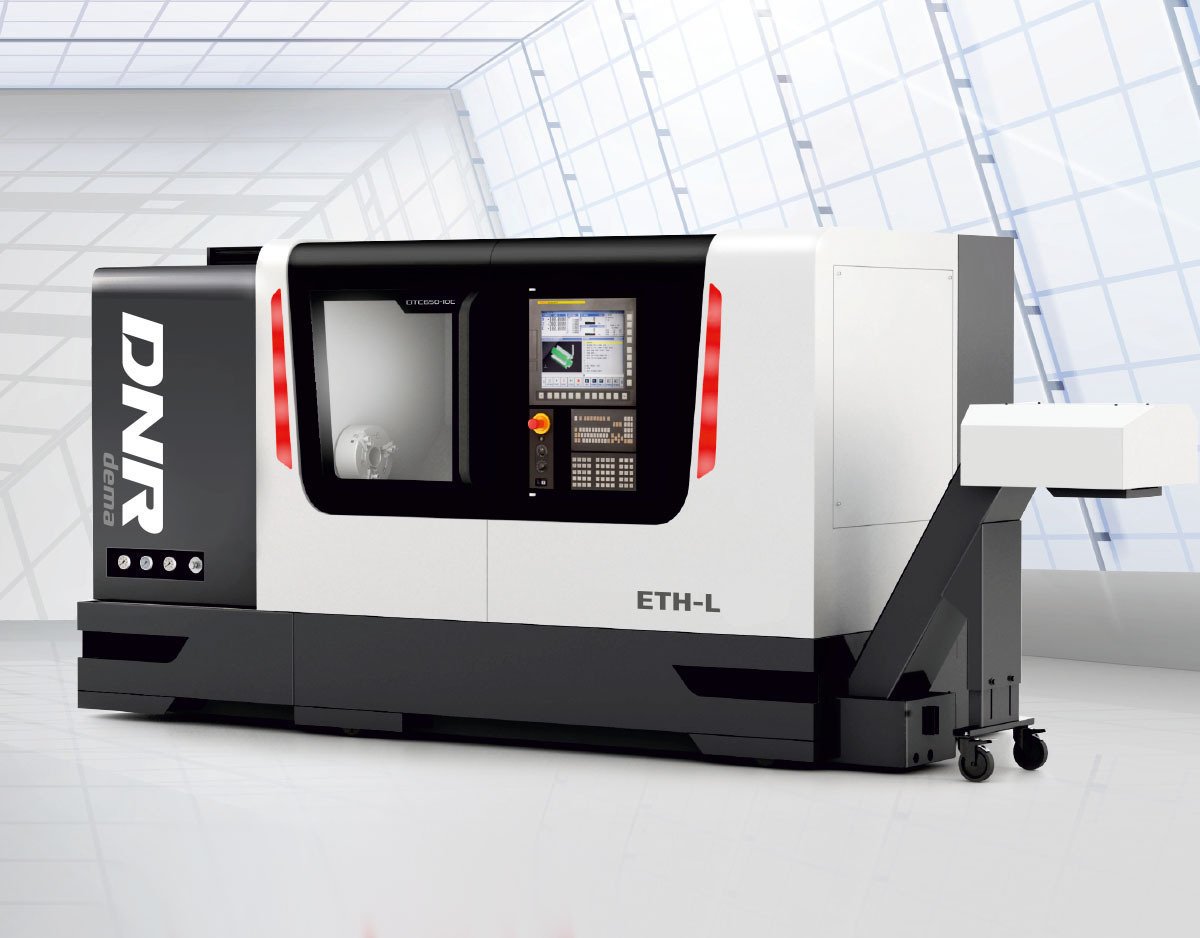

ETH-L10 CNC TORNA TEZGAHI
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
-Custom produced precision, gapless double nut screw shafts.
-Powerful, fast and fast automatic tool changer turret.
-Rigid spindles with super precision bearings.
-Stable starting with multi-point linear guideway.
-Very precise positioning and repeatability accuracy.
-High cutting ability without noise and vibration.
-One-piece 45° inclined robust cast body.
-Free installation and training support in the country.
-Fast service and spare parts support
| Axis speed (Idle) – X/Z | 30/30 | m/min. |
| Cutting – feedrate – X/Z | 1~10/1~10 | m/min. |
| Rotation diameter | 600 | mm |
| Maximum turning diameter | 400 | mm |
| Processing length | 650 | mm |
| Mirror size | 10 | inch |
| spindle speed | 3500 | r/min. |
| spindle motor power | 18.5/22 | kW |
| spindle bore diameter | 98 | mm |
| Rod drive diameter | 81 | mm |
Standard Equipment
*FANUC 0 İ TF (15″ LCD display) control unit.
*Class C3 ball screw with double nut
* Roller linear guides
* Fully enclosed cabin
* Chip conveyor.
*Automatic lubrication system
*Automatic coolant system.
*Oil and water separator unit
*Foot pedal.
*Front door safety switch.
*10″ Hydraulic chuck, soft-hard jaws.
*Interior lighting and alarm-warning lamps.
*Electric cabin cooling system.
*Portable handwheel.
Optional Equipment
*Mitsubishi M80A-8A (15″ LCD display) control unit.
*Tool measuring system.
*Rod drive unit.
*Hydraulic intermediate bearing (Lunet)
*Air conditioner for electric cabinet
