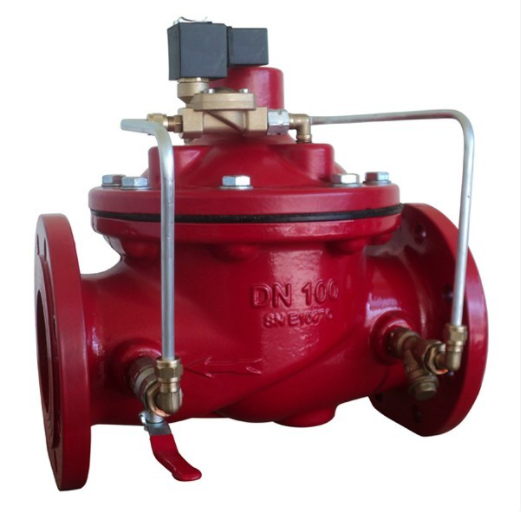

Electric Float Level Control Valve
Electric Float Level Control Valve
Solenoid control valvesthen in practice on - the hydraulic control valve which performs closing function on the remote automatically using electrical energy.
It provides the control of solenoid control valves by means of a control device that can give an electrical signal, PLC control units or time relays.
Product features
Since the structure of the float level control valve is very simple, its use also offers great advantages for the user.
The electric float of the valve is modular. Easy assembly to the structure to be leveled in the desired form
is done.
Thanks to the electric float, the level control range can be easily adjusted to the desired dimensions.
A simple controller is located between the main valve and the Electric float.
Thanks to the ball valve on the main valve, the on-off function can be controlled manually.
The valve works completely hydraulically with line pressure without requiring any extra energy.
Usage Instruction
Mount the valve according to the arrow sign showing the flow direction on it.
For ease of service maintenance of the valve, it is recommended to install isolation valves (gate, butterfly or ball valve, etc.) to shut off the water in the upstream line.
In order for the valve to work efficiently, it is recommended to put a suction cup before the valve.
Assemble the electric float of the electric float level control valve to the tank in a fixed way.
Connect the electric float to the control device in accordance with the voltage values of the solenoid valve on the main valve.
If correctly connected to the control unit, the valve will operate in automatic mode.
Control valves perform the on-off function with system pressure. If the system pressure is close to zero during tank filling, the valve will not operate. Check the valve inlet pressure value.
Use the relief ball valve 3 to operate the valve manually. If the valve will operate in automatic mode, the ball valve must be in the closed position.
In order to protect the valve from the danger of frost during the winter months, discharge the water in the actuator of the valve to the atmosphere.
