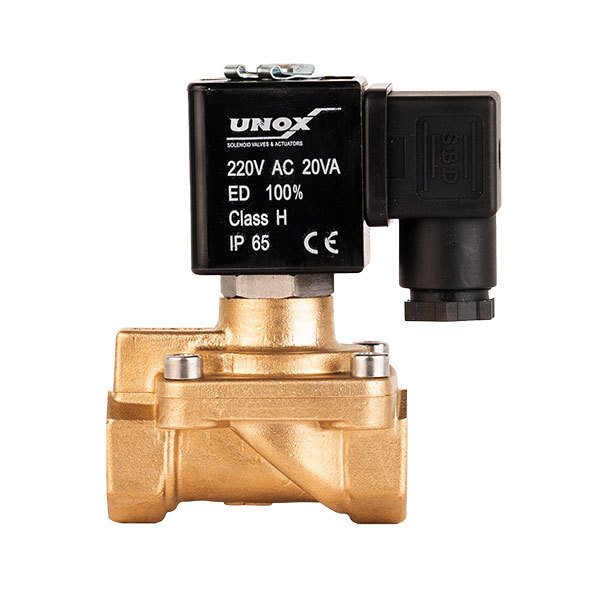

Kompresör Solenoid Valf – 3/2 Normalde Kapalı – KOM

Solenoid valves are two-way or three-way valves that operate with AC and DC electrical energy and provide control of various fluids (air, gas, fuel, steam, water, etc.). They consist of a body, sleeve, coil, diaphragm and core. Solenoid valves are manufactured in two types: normally closed (to open the closed valve when the coil receives energy) and normally open (to close the open valve when it receives energy from the coil).

THINGS TO CONSIDER WHEN SELECTING A SOLENOID VALVE:

-The coil is suitable for the operating voltage where it will be used. (AC-DC) must be selected. Protection and insulation must be made according to the place of application.
(It opens when the electricity comes out and returns to the closed position when you cut off the electricity.)
-Minimum and maximum pressure values in the line or system you will use are very important in selecting the valve.
-The quality and temperature of the fluid are direct factors in the selection of the valve.
-Pay attention to the installation and ensure that the direction of the fluid is in the same direction as the arrow mark on the body.
-Since the solenoid valve does not function as a check valve, fluid flows back in case of reverse pressure. In these cases, the solenoid valve
then installing a check valve is correct in terms of connection.
-The line to which the valve is installed must be free of dirt.
