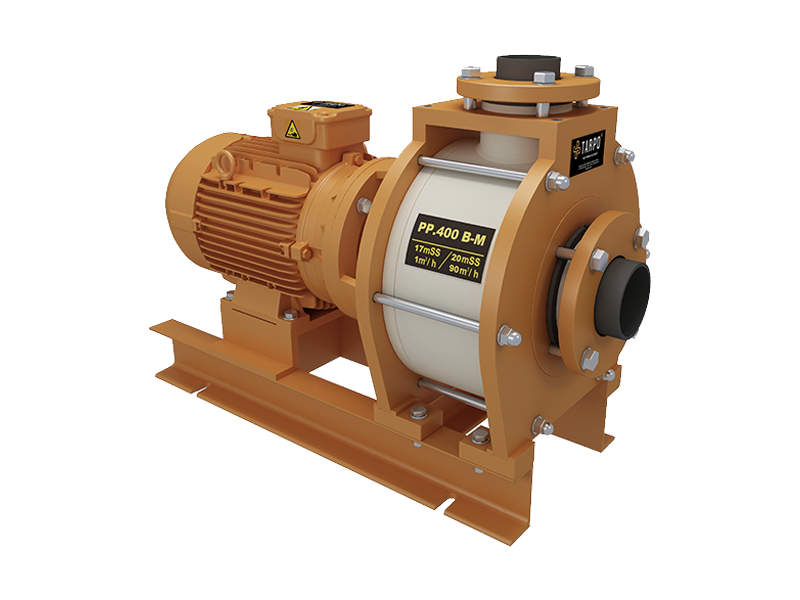

400 BM Horizontal Shaft Pump
Category
Stock code
HLVX2479
Mekanik Markt olarak 7/24 yanınızdayız. Bizimle Whatsapp ile iletişime geçerek ürünlerimiz hakkında detaylı bilgileri alabilirsiniz.
| Model 400 BM 110-225-75 |
| Motor power 5.5Kw - 1450rpm |
| Engine Types 380V - Exproof |
| Pump Pressure 1.7 Bar |
| Pump Flow Max: 17 mSS – 20 m³/h Min: 1 mSS – 90 m³/h |
| Input & Output Dimension Ø110mm - Ø75mm Flange Connection |
| Sealing Type Mechanical Seal Kit |
| Sealing Type Teflon, Carbon, Ceramic and Silicon |
| Pump Shaft 316 Inox Stainless Steel (Plastic Coated) |
| Fan Type Indoor Fan (Special Design) |
| Material Type PP, PVDF |
| Operating Temperature Range PP: 0ºC +90°C, PVDF : -30ºC & +120ºC |
| Usage Area Suitable for Aggressive and Abrasive Corrosive Chemicals. |
